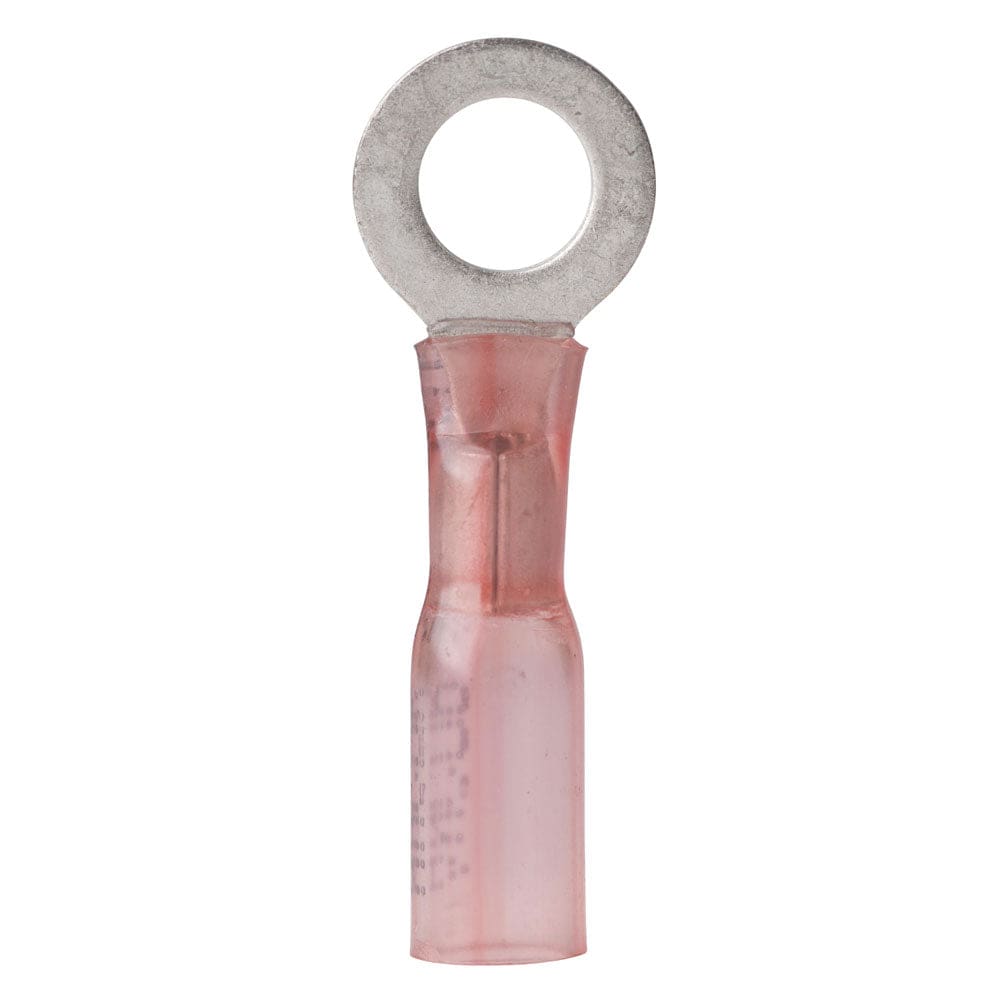

Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack
Ancor 22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack
Regular price
$45.89
Regular price
Sale price
$45.89
Unit price
/
per
22-18 Gauge - #10 Heat Shrink Ring Terminal - 100-Pack
Wire Range:22-18
Screw Size:#10
Quantity: 100
Product Features:
Manufacturer Part Numbers: 310399
Quick Guide (PDF)
GRP:WRO
View full details
Wire Range:22-18
Screw Size:#10
Quantity: 100
Product Features:
- Cross Linked polyolefin tubing is much stronger than PVC tubing and
will not burn like PVC
- Heat activated adhesive lining provides impervious seal to salt water,
oil, acids, and sunlight as well as providing strain relief
- Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
- UL Listed and CSA Recognized
- Highest shrink ratio - shrinks to 1/3 original size
- Shrinks at 257° F/125° C
- Operating temperature range 40° C to 110° C
- ANCOR heat shrink connectors offer heat activated adhesive built into
the sleeve of the heat shrink tubing
- Shrinks to form a water tight seal and the ultimate vibration and strain relief
- Tinned for corrosion resistance
- Pure copper for maximum current flow
- Brazed seam for maximum strength
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer Part Numbers: 310399
Quick Guide (PDF)
GRP:WRO
