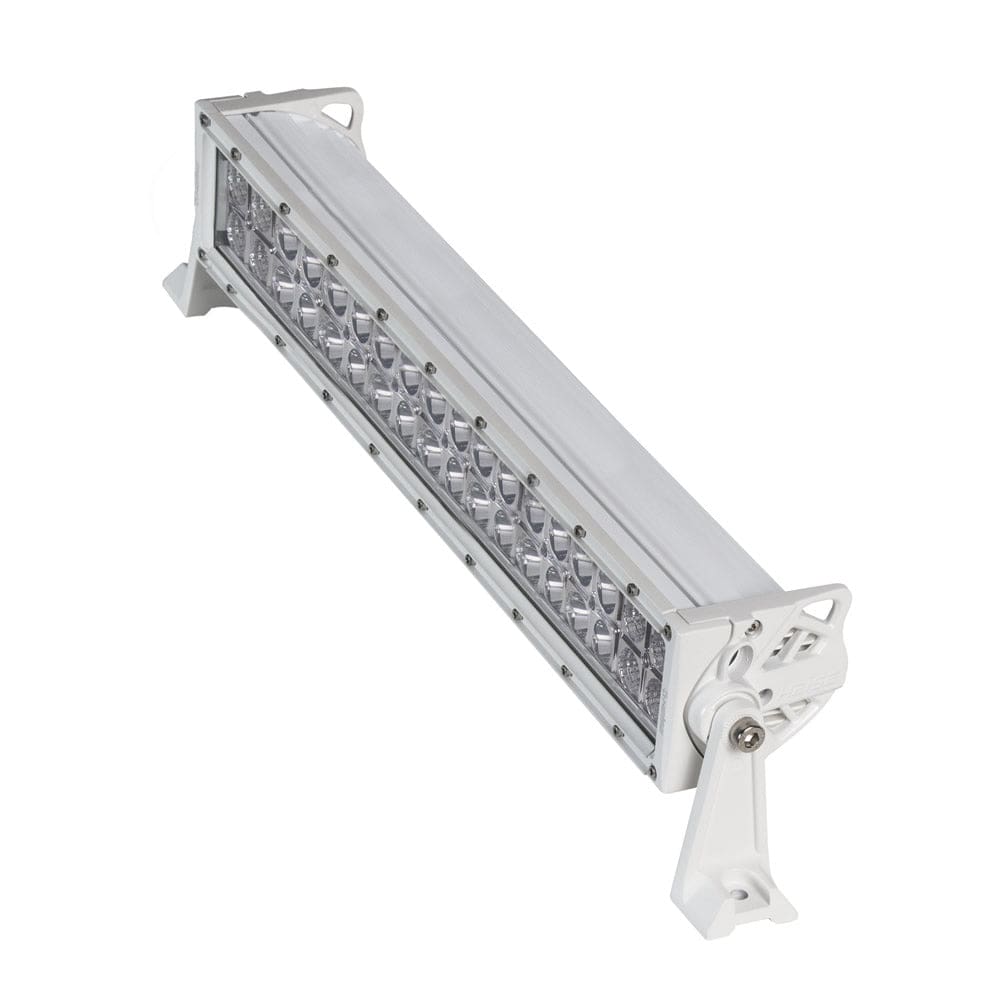

20" Dual Row Marine Bar

Specifications:

• Input Voltage: 10-30V
• Wattage: 108W
• Raw Lumens: 8640
• LUX @ 10M: 612
• Color Temperature: 6000K
• Beam Pattern: Combo: Flood (90°) / Spot (8°)

Construction:

• Housing Material: Die-cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die-cast Aluminum
• Hole Dimensions: Brackets turned inward - 19.50"
• Brackets turned outward - 21.75"
• Mounting Bolt Drill - .25"
• Height of Light Bar Itself: 4.8"
• Depth of Light Bar Itself: 3.50"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

Operation:

• Operating Temperature: -40°C to +60°C
• Current Consumption: 5.7 Amps @ 13.8 Volts
• IP Rating: IP68
• Protections: Reverse Polarity
